Description

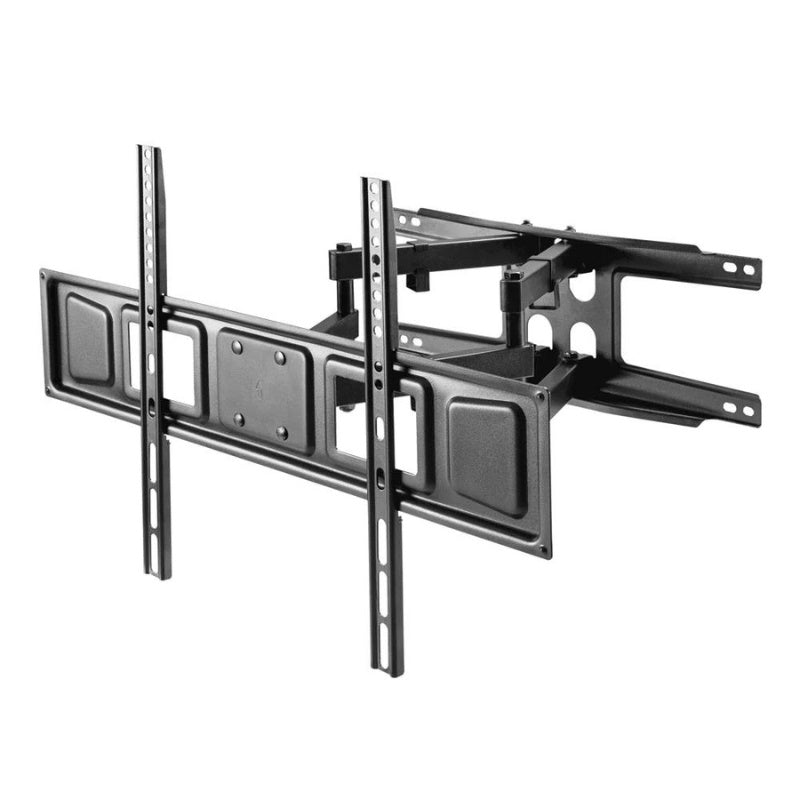

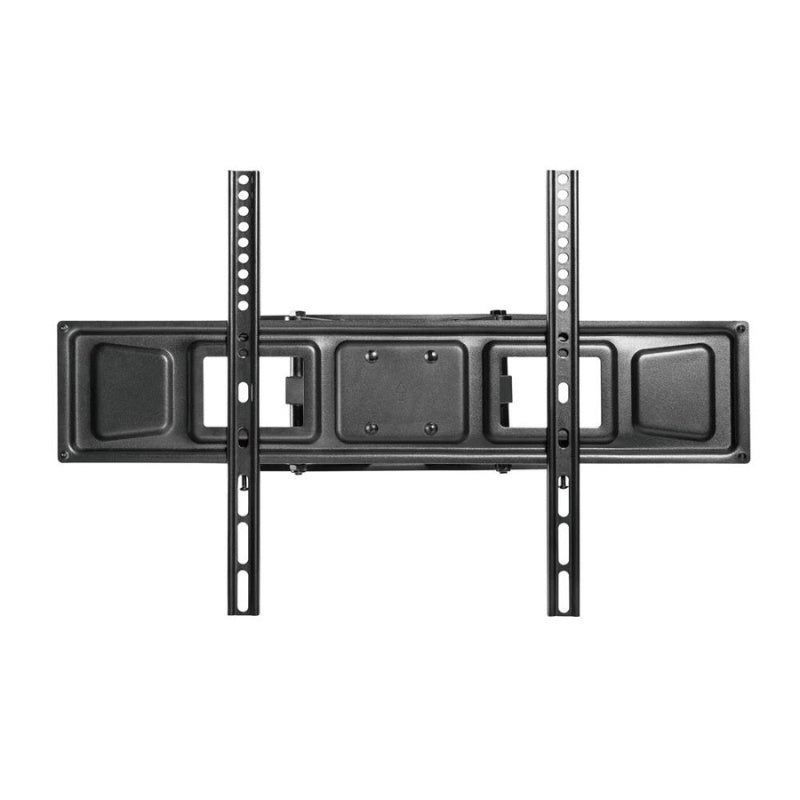

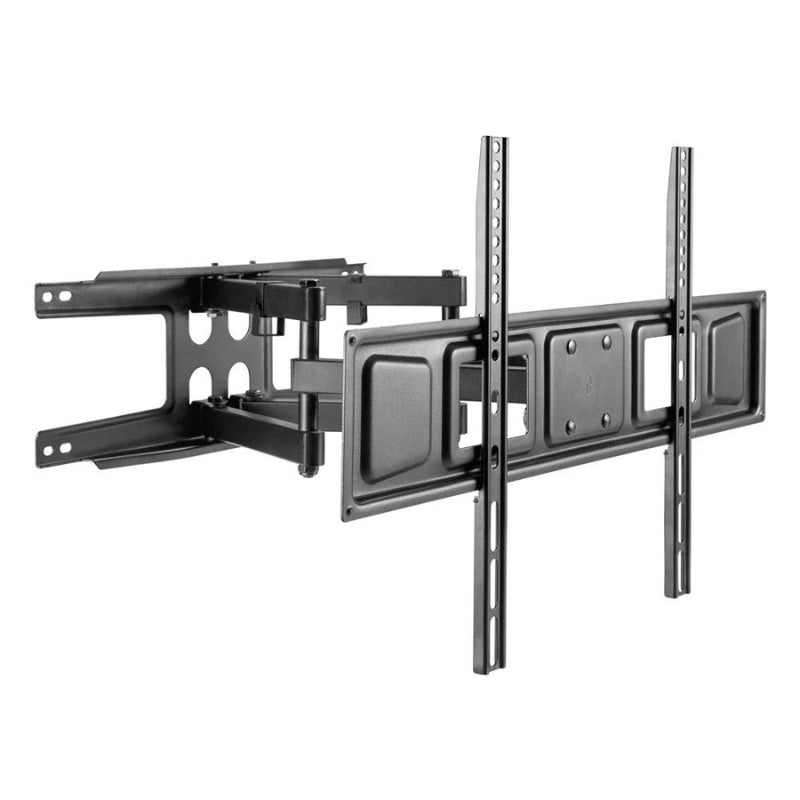

The low profile offers sufficient room for cable connections and cooling while keeping TV close to the wall. It offers an open frame design to provide plenty of room for power and AV cutouts.

Specifications
Compatible with LCD/LED
+5° ~ -15° adjustable tilting wall mount
VESA 75x75, 100x100, 100x150, 100x200, 150x100, 150x150, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400 compliant
Fits mounting patterns up to 600x404mm (WxH)
Display to be folded parallel to wall
Screen level adjustment -3° to +3°

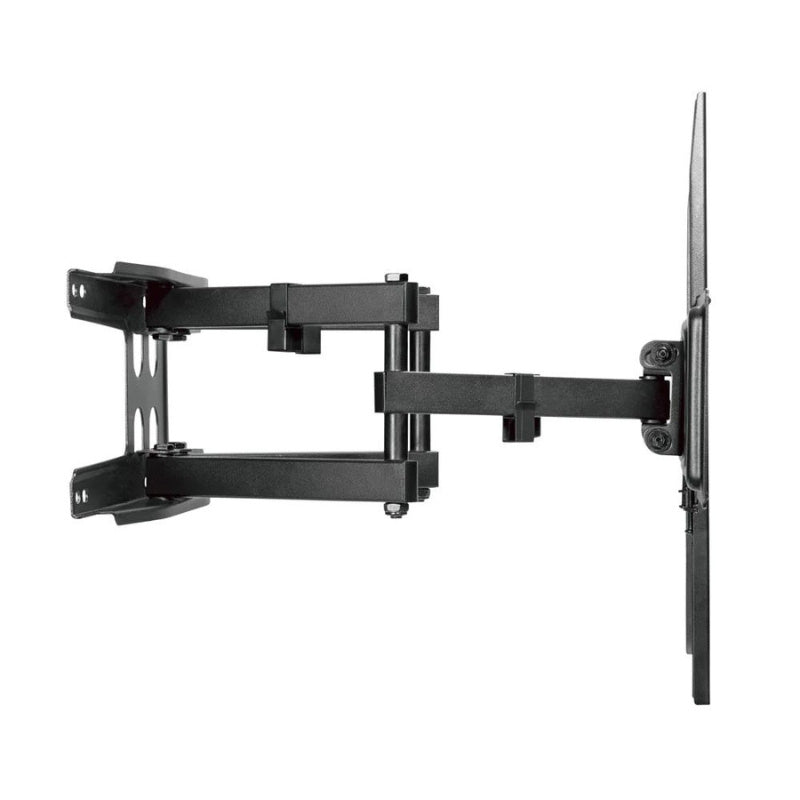

Arm provides full extension and 60° of left or right lateral rotation
Mounting profile 2.4"-18.4" (62-468mm)
Max. load capacity: 40Kgs (88Lbs)
Includes M8x50 screws for new Samsung TVs
Includes special tube washers for Curved screen models
